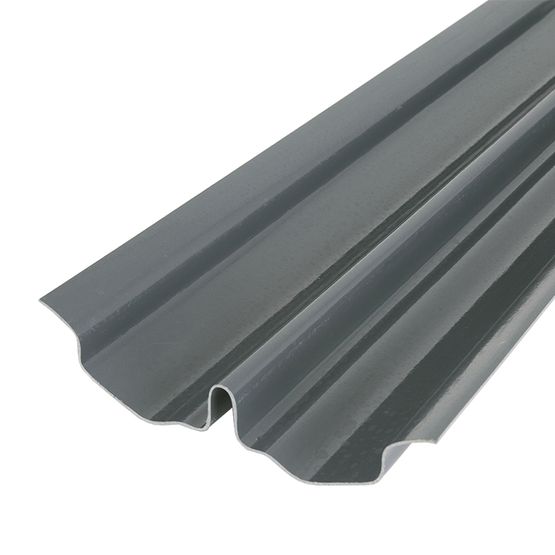

Harcon Corodrain Dry Fix Standard Weight Valley for Low Profile Tiles - 3m

The Harcon universal heavyweight dry fix valley is manufactured in high performance GRP. This material means it can last as long as lead, making it tougher, cheaper and more resistant to accidental damage. This also means it is less prone to theft or vandalism.

Features & Benefits: Harcon Corodrain Dry Fix Standard Weight Valley for Low Profile Tiles - 3m

• Lasts as long as lead (minimum 30 years)
• As durable as lead
• High accidental damage resistance
• Less prone to theft
• Quick installation
• Lead-like apperance
• Cost effective
• Suitable for use on roofs with pitches 17.5° to 49°
• Can accommodate a maximum difference between two rafter pitches of 15°

Installation

• Harcon universal heavyweight dry fix valleys are recommended for use with low profile tiles and are easy to install. Typically the dry fix valleys can be used on roofs with pitches 17.5° to 49°. They can also accommodate a maximum difference between two rafter pitches of 15°.

Product Specification

• Length: 3m
• Width: 280mm
• Upstand Height: 90mm
• Thickness: 2mm
• Roof Pitch (350mm lap): 17.5° to 22°
• Roof Pitch (300mm lap) 22.5° to 29°
• Roof Pitch (200m lap): 30° to 39°
• Roof Pitch (150mm lap): 40° to 49°
